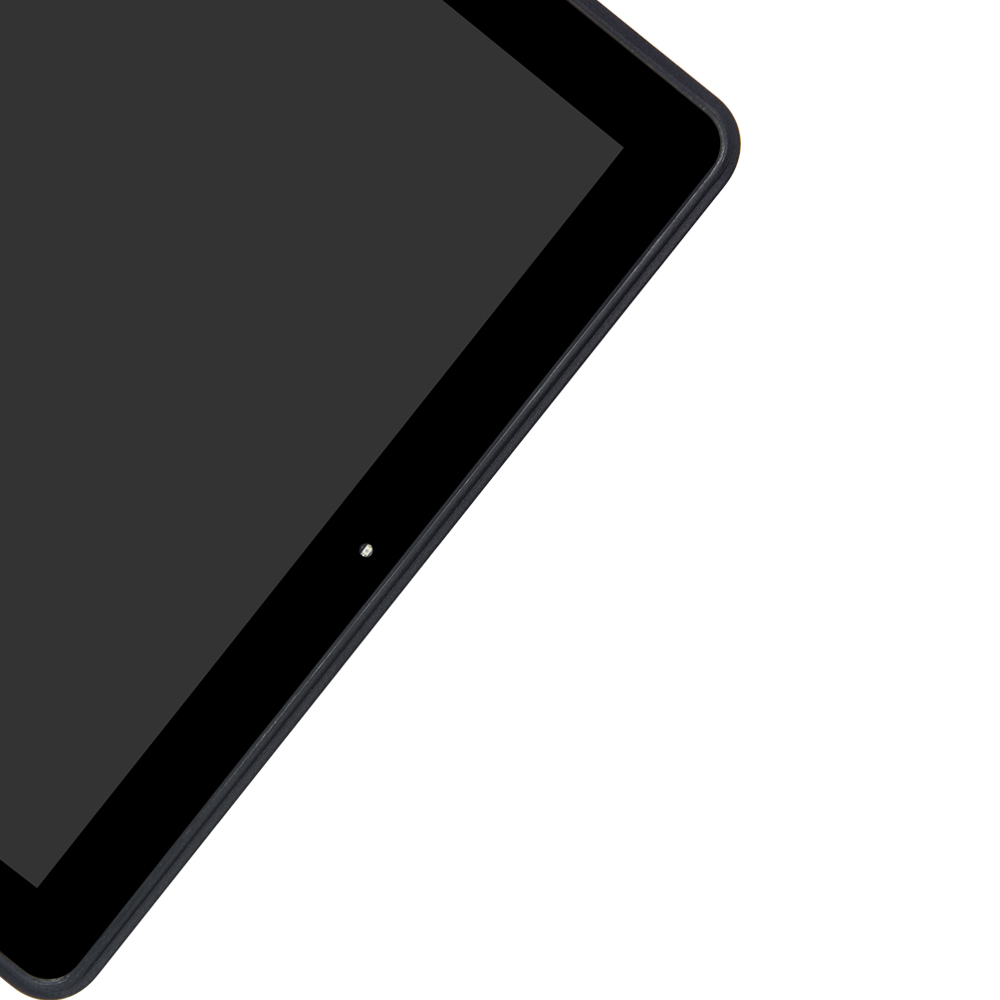

Kev lag luam muaj IP65 tiaj tus 10.1 Nti Controllable kub Kov Screen Saib rau POS System Terminal DC 12V LCD kov zaub
10.1 nti PCAP Touch Monitor specification:
| General | |
| Qauv | COT101-CFF02 |
| Series | Dej pov thawj |
| Saib Dimensions | Dav: 254.8mm Qhov siab: 177.5mm Qhov tob: 40mm |
| Hom LCD | 10.1" Active matrix TFT-LCD |

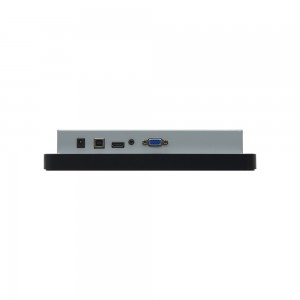

| Video tswv yim | VGA thiab DVI |

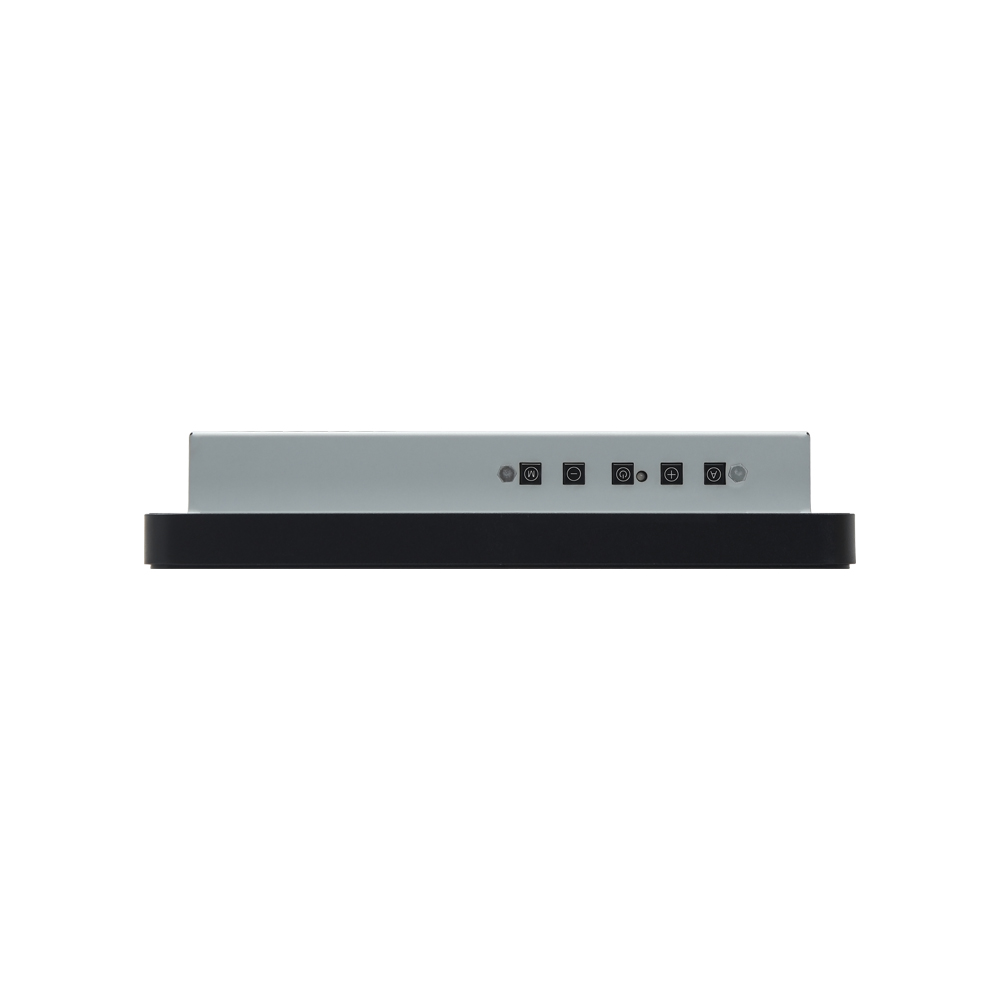

| OSD tswj | Tso cai rau ntawm qhov kev hloov kho ntawm Brightness, Contrast Ratio, Nws pib-kho, Theem, moos, H/V Qhov Chaw, Lus, Muaj nuj nqi, Rov pib dua |
| Fais fab mov | Hom: Sab nrauv cib Tawm tswv yim (kab) voltage: 100-240 VAC, 50-60 Hz Output voltage / tam sim no: 12 volts ntawm 4 amps max |
| Mount Interface | 1) VESA 75mm thiab 100mm 2) Mount bracket, kab rov tav lossis ntsug |
| LCD Specification | |
| Active Area(mm) | 216.96 (H) x 135.6 (V) |
| Kev daws teeb meem | 1280 × 800 @ 60Hz |
| Dot Pitch (mm) | 0.1695(H) x 0.1695(V) |
| Nominal Input Voltage VDD | +4V (Max) |
| Saib lub kaum ntse ntse (v/h) | 80 ° / 89 ° (CR> 10) |
| Zoo sib xws | 800: 1 |
| Luminance (cd / m2) | 450 |
| Lub Sijhawm Teb (Rising) | 25msc ua |
| Txhawb Xim | 16.7M xim |
| Backlight MTBF (hli) | 10000 (Min) |
| Touchscreen Specification | |
| Hom | Cjtouch Projected Capacitive kov npo |
| Multi kov | 5 ntsiab lus kov |
| Kov lub neej voj voog | 10 lab |
| Kov teb lub sij hawm | 8ms ib |
| Kov qhov System Interface | USB interface |
| Kev siv fais fab | +5V@80mA |
| Sab nraud AC Power Adapter | |
| Tso zis | DC 12V / 4A |
| Tswv yim | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 teev ntawm 25 ° C |
| Ib puag ncig | |
| Kev khiav hauj lwm Temp. | 0 ~ 50 ° C |
| Cia Temp. | -20 ~ 60 ° C |
| Ua haujlwm RH: | 20% ~ 80% |
| Cia RH: | 10% ~ 90% |
Daim ntawv thov:
♦ Cov ntaub ntawv Kiosks
♦ Lub Tshuab Gaming, Rho Npe, POS, ATM thiab Tsev Qiv Ntawv Tsev khaws puav pheej
♦ Tsoom fwv tej yaam num thiab 4S Khw
♦ Electronic catalogs
♦ Kev siv computer-based traning
♦ Eductioin thiab Tsev Kho Mob Kho Mob
♦ Digital Signage Advertisement
♦ Industrial Control System
♦ AV Equip & Rental lag luam
♦ Daim Ntawv Thov Simulation
♦ 3D Visualization / 360 Deg Walkthrough
♦ Sib tham sib kov rooj
♦ Cov tuam txhab loj

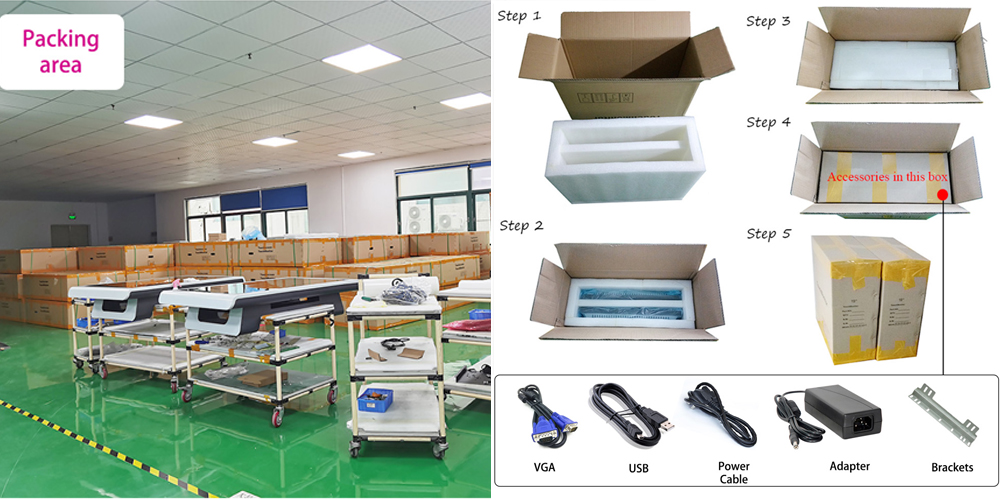

Ntim
Tuam txhab Profile
Founded hauv 2011. Los ntawm muab cov neeg siv khoom txaus siab ua ntej, CJTOUCH tsis tu ncua muaj kev tshwj xeeb rau cov neeg siv khoom thiab kev txaus siab los ntawm nws ntau yam kev siv thev naus laus zis thiab kev daws teeb meem suav nrog All-in-One touch systems.
CJTOUCH ua rau muaj cov cuab yeej kov siab heev ntawm tus nqi tsim nyog rau nws cov neeg siv khoom. CJTOUCH ntxiv tus nqi tsis txaus ntseeg los ntawm kev hloov kho kom tau raws li cov kev xav tau tshwj xeeb thaum xav tau. Lub versatility ntawm CJTOUCH cov khoom kov yog pom tseeb los ntawm lawv muaj nyob rau hauv ntau yam lag luam xws li Gaming, Kiosks, POS, Banking, HMI, Healthcare thiab Public Transportation.
